Descripción

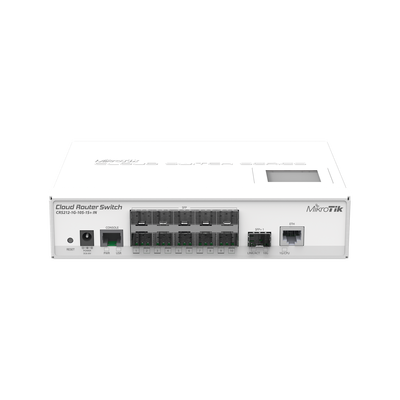

Cloud Router Switch 212-1G-10S-1S+IN es un nuevo miembro de 'pequeño tamaño y bajo costo' de nuestra serie CRS. Viene con un puerto Gigabit Ethernet RJ45, diez puertos SFP y un puerto 10G SFP+, además de panel LCD y puerto serie (RJ45). El producto incluye caja de escritorio interior y fuente de alimentación. Se proporcionan orejas especiales para montar la unidad en un bastidor (Rack).
Nuestra serie CRS combina las mejores características de un enrutador completamente funcional y un switch de Capa 3, alimentado por el conocido RouterOS. Todas las opciones específicas de configuración del conmutador están disponibles en un menú especial del switch, pero si lo desea, los puertos pueden eliminarse de la configuración del switch y utilizarse para fines de enrutamiento.
Specifications
| Details | |
|---|---|
| Product code | CRS212-1G-10S-1S+IN |
| Architecture | MIPSBE |
| CPU | QCA8519 |
| CPU core count | 1 |
| CPU nominal frequency | 400 MHz |
| Dimensions | 200x144x47mm |
| License level | 5 |
| Operating System | RouterOS |
| Size of RAM | 64 MB |
| Storage size | 16 MB |
| Storage type | FLASH |
| Tested ambient temperature | -20C to +55C tested |
| Suggested price | $219.00 |
Powering
| Details | |
|---|---|
| Number of DC inputs | 1 (DC jack) |
| DC jack input Voltage | 8-30 V |
| Max power consumption | 20 W |
| Max power consumption without attachments | 20W |
Ethernet
| Details | |
|---|---|
| 10/100/1000 Ethernet ports | 1 |
Fiber
| Details | |
|---|---|
| SFP ports | 10 |
| SFP+ ports | 1 |
Peripherals
| Details | |
|---|---|
| Serial port | RJ45 |
Other
| Details | |
|---|---|
| Current Monitor | Yes |
| PCB temperature monitor | Yes |
| Voltage Monitor | Yes |
Switching results
| CRS212-1G-10S-1S+IN | |||||||
|---|---|---|---|---|---|---|---|
| Mode | Configuration | 64 byte | 512 byte | 1518 byte | |||
| kpps | Mbps | kpps | Mbps | kpps | Mbps | ||
| Switching | Non blocking Layer 2 throughput | 31,250.0 | 16,000.0 | 4,934.2 | 20,210.5 | 1,706.8 | 20,726.9 |
| Switching | Non blocking Layer 2 capacity | 31,250.0 | 32,000.0 | 4,934.2 | 40,421.1 | 1,706.8 | 41,453.8 |
| Switching | Non blocking Layer 1 throughput | 31,250.0 | 21,000.0 | 4,934.2 | 21,000.0 | 1,706.8 | 21,000.0 |
| Switching | Non blocking Layer 1 capacity | 31,250.0 | 42,000.0 | 4,934.2 | 42,000.0 | 1,706.8 | 42,000.0 |
Ethernet test results
| CRS212-1G-10S-1S+IN | QCA8519 Max possible throughput test | ||||||
| Mode | Configuration | 1518 byte | 512 byte | 64 byte | |||
| kpps | Mbps | kpps | Mbps | kpps | Mbps | ||
| Bridging | none (fast path) | 26.7 | 324.2 | 28.6 | 117.1 | 24.5 | 12.5 |
| Bridging | 25 bridge filter rules | 21.4 | 259.9 | 22.4 | 91.8 | 22.2 | 11.4 |
| Routing | none (fast path) | 23.0 | 279.3 | 23.5 | 96.3 | 24.5 | 12.5 |
| Routing | 25 simple queues | 19.6 | 238.0 | 22.4 | 91.8 | 21.0 | 10.8 |
| Routing | 25 ip filter rules | 7.9 | 95.9 | 10.4 | 42.6 | 10.8 | 5.5 |
