Descripción

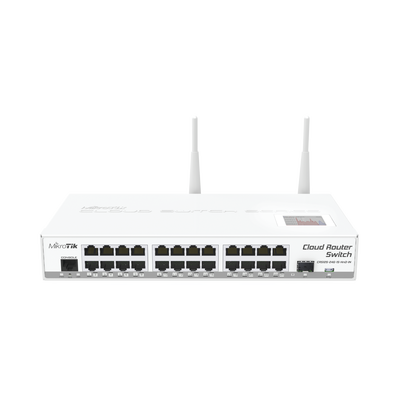

Cloud Router Switch es nuestra nueva serie Smart Switch. Combina las mejores características de un enrutador completamente funcional y un swicth de Capa 3, que funciona con el familiar RouterOS. Todas las opciones de configuración específicas de Switch están disponibles en un menú especial de Switch, pero si lo desea, los puertos pueden eliminarse de la configuración del switch y utilizarse para el enrutamiento.
Además, este dispositivo tiene un punto de acceso inalámbrico incorporado de 2.4GHz, esto significa que puede tener un AP, un enrutador con cualquier cantidad de puertos y un conmutador inteligente de velocidad de cable completo, todo en un solo dispositivo, ideal para medianas y pequeñas empresas y oficinas. Tiene 24 puertos Gigabit, una jaula SFP, un puerto microUSB y un Wireless AP integrado.
Enrutador de puerta de enlace SOHO perfecto, interruptor, AP 11n todo en una caja
• Conexión de puerta de enlace Ethernet, Fiber o 4G (con módem USB opcional) a Internet
• RouterOS gateway / firewall / VPN con refrigeración pasiva
• hasta veinticinco puertos de switch gigabit (1xSFP y 24xRJ45)
• alta potencia 2.4GHz 11n AP inalámbrico
Specifications
| Details | |
|---|---|
| Product code | CRS125-24G-1S-2HnD-IN |
| Architecture | MIPSBE |
| CPU | AR9344 |
| CPU core count | 1 |
| CPU nominal frequency | 600 MHz |
| Dimensions | 285x145x45mm (Para Escritorio) |
| License level | 5 |
| Operating System | RouterOS |
| Size of RAM | 128 MB |
| Storage size | 128 MB |
| Storage type | NAND |
| Tested ambient temperature | -35C to +65C |
Powering
| Details | |
|---|---|
| Max Power consumption | 19W |
| PoE in | Passive PoE |
| PoE in input Voltage | 8-28 V |
| Number of DC inputs | 2 (DC jack, PoE-IN) |
| DC jack input Voltage | 8-28 V |
Wireless
| Details | |
|---|---|
| Wireless 2.4 GHz number of chains | 2 |
| Wireless 2.4 GHz standards | 802.11b/g/n |
| Antenna gain dBi for 2.4 GHz | 4 |
| Wireless 2.4 GHz chip model | AR9344 |
Ethernet
| Details | |
|---|---|
| 10/100/1000 Ethernet ports | 24 |
Fiber
| Details | |
|---|---|
| SFP DDMI | Yes |
| SFP ports | 1 |
Peripherals
| Details | |
|---|---|
| Number of USB ports | 1 |
| Serial port | RJ45 |
| USB Power Reset | Yes |
| USB slot type | microUSB type AB |
Other
| Details | |
|---|---|
| PCB temperature monitor | Yes |
| Voltage Monitor | Yes |
Wireless specifications
| 2.4 GHz | Transmit (dBm) | Receive Sensitivity |
|---|---|---|
| 1MBit/s | 29 | -97 |
| 11MBit/s | 28 | -90 |
| 6MBit/s | 30 | -96 |
| 54MBit/s | 25 | -76 |
| MCS0 | 30 | -96 |
| MCS7 | 23 | -73 |
Switching results
| CRS125-24G-1S-2HnD-IN | |||||||
|---|---|---|---|---|---|---|---|
| Mode | Configuration | 64 byte | 512 byte | 1518 byte | |||
| kpps | Mbps | kpps | Mbps | kpps | Mbps | ||
| Switching | Non blocking Layer 2 throughput | 37,202.4 | 19,047.6 | 5,874.1 | 24,060.2 | 2,031.9 | 24,674.9 |
| Switching | Non blocking Layer 2 capacity | 37,202.4 | 38,095.2 | 5,874.1 | 48,120.3 | 2,031.9 | 49,349.8 |
| Switching | Non blocking Layer 1 throughput | 37,202.4 | 25,000.0 | 5,874.1 | 25,000.0 | 2,031.9 | 25,000.0 |
| Switching | Non blocking Layer 1 capacity | 37,202.4 | 50,000.0 | 5,874.1 | 50,000.0 | 2,031.9 | 50,000.0 |
Ethernet test results
| CRS125-24G-1S-2HnD-IN | AR9344 1G all port test | ||||||
| Mode | Configuration | 1518 byte | 512 byte | 64 byte | |||
| kpps | Mbps | kpps | Mbps | kpps | Mbps | ||
| Bridging | none (fast path) | 81.0 | 983.7 | 232.0 | 950.3 | 269.6 | 138.0 |
| Bridging | 25 bridge filter rules | 81.0 | 983.7 | 86.0 | 352.3 | 87.6 | 44.9 |
| Routing | none (fast path) | 81.0 | 983.7 | 210.0 | 860.2 | 226.9 | 116.2 |
| Routing | 25 simple queues | 81.0 | 983.7 | 103.9 | 425.6 | 106.6 | 54.6 |
| Routing | 25 ip filter rules | 56.8 | 689.8 | 59.6 | 244.1 | 60.5 | 31.0 |
Included parts
Included parts
*1 año de garantía.
