Descripción

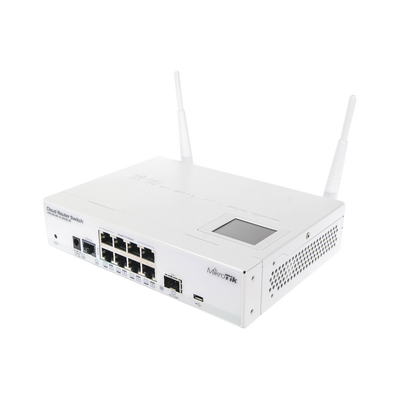

CRS109-8G-1S-2HnD-IN
Cloud Router Switch 109-8G-1S-2HnD-IN es nuevo 'pequeño tamaño bajo costo' miembro de nuestra serie de CRS. Viene con ocho puertos Ethernet Gigabit y alta potencia de 1000 mW inalámbrica de 2,4 GHz. Producto compatible con 10-57V y es 802.3af / at compatible!
Nuestra serie CRS combina las mejores características de un router totalmente funcional y un conmutador de capa 3, es alimentado por el RouterOS familiares. Todas las opciones de configuración del interruptor específicos están disponibles en un menú especial interruptor, pero si lo desea, los puertos pueden ser retirados de la configuración del switch, y se utilizan con fines de enrutamiento.
Specifications
| Details | |
|---|---|
| Product code | CRS109-8G-1S-2HnD-IN |
| Architecture | MIPSBE |
| CPU | AR9344 |
| CPU core count | 1 |
| CPU nominal frequency | 600 MHz |
| Dimensions | 200x145x45mm |
| License level | 5 |
| Operating System | RouterOS |
| Size of RAM | 128 MB |
| Storage size | 128 MB |
| Storage type | NAND |
| Tested ambient temperature | -35C to +65C tested |
Powering
| Details | |
|---|---|
| Max Power consumption | 13W |
| PoE in | Passive PoE |
| 802.3af support | yes |
| PoE in input Voltage | 10-57 V |
| Number of DC inputs | 2 (DC jack, PoE-IN) |
| DC jack input Voltage | 10-57 V |
Wireless
| Details | |
|---|---|
| Wireless 2.4 GHz number of chains | 2 |
| Wireless 2.4 GHz standards | 802.11b/g/n |
| Antenna gain dBi for 2.4 GHz | 4 |
| Wireless 2.4 GHz chip model | AR9344 |
Ethernet
| Details | |
|---|---|
| 10/100/1000 Ethernet ports | 8 |
Fiber
| Details | |
|---|---|
| SFP DDMI | yes |
| SFP ports | 1 |
Peripherals
| Details | |
|---|---|
| Number of USB ports | 1 |
| Serial port | RJ45 |
| USB Power Reset | Yes |
| USB slot type | microUSB type AB |
Other
| Details | |
|---|---|
| PCB temperature monitor | Yes |
| Voltage Monitor | Yes |
Wireless specifications
| 2.4 GHz | Transmit (dBm) | Receive Sensitivity |
|---|---|---|
| 1MBit/s | 29 | -97 |
| 11MBit/s | 28 | -90 |
| 6MBit/s | 30 | -96 |
| 54MBit/s | 25 | -76 |
| MCS0 | 30 | -96 |
| MCS7 | 23 | -73 |
Switching results
| CRS109-8G-1S-2HnD-IN | |||||||
|---|---|---|---|---|---|---|---|
| Mode | Configuration | 64 byte | 512 byte | 1518 byte | |||
| kpps | Mbps | kpps | Mbps | kpps | Mbps | ||
| Switching | Non blocking Layer 2 throughput | 13,392.9 | 6,857.1 | 2,114.7 | 8,661.7 | 731.5 | 8,883.0 |
| Switching | Non blocking Layer 2 capacity | 13,392.9 | 13,714.3 | 2,114.7 | 17,323.3 | 731.5 | 17,765.9 |
| Switching | Non blocking Layer 1 throughput | 13,392.9 | 9,000.0 | 2,114.7 | 9,000.0 | 731.5 | 9,000.0 |
| Switching | Non blocking Layer 1 capacity | 13,392.9 | 18,000.0 | 2,114.7 | 18,000.0 | 731.5 | 18,000.0 |
Ethernet test results
| CRS109-8G-1S-2HnD-IN | AR9344 1G all port test | ||||||
| Mode | Configuration | 1518 byte | 512 byte | 64 byte | |||
| kpps | Mbps | kpps | Mbps | kpps | Mbps | ||
| Bridging | none (fast path) | 81.0 | 983.7 | 232.0 | 950.3 | 269.6 | 138.0 |
| Bridging | 25 bridge filter rules | 81.0 | 983.7 | 86.0 | 352.3 | 87.6 | 44.9 |
| Routing | none (fast path) | 81.0 | 983.7 | 210.0 | 860.2 | 226.9 | 116.2 |
| Routing | 25 simple queues | 81.0 | 983.7 | 103.9 | 425.6 | 106.6 | 54.6 |
| Routing | 25 ip filter rules | 56.8 | 689.8 | 59.6 | 244.1 | 60.5 | 31.0 |
