FEATURES

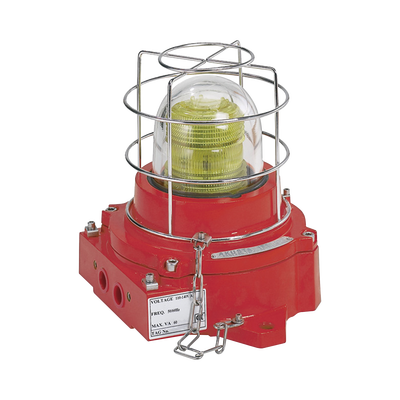

The 2000 Series Model LED is a visual signal warning light for use in hazardous locations requiring ATEX approval. The beacon can produce three light patterns: steady-on, slow flash or rapid flash.
The 2000 Series LED beacon is sealed from dust and water by a nitrile rubber o-ring. All exterior cast aluminum surfaces are finished in powder coat paint and external hardware is manufactured from stainless steel to resist corrosion. Available signal colors are Amber, Blue, Clear, Green, Red and Yellow.
The 2000 Series LED beacon is externally powered by 24VDC or 110-240VAC source. All AC powered units feature aswitch mode power supply that accommodates a wide input voltage range without requiring any additional configuration from the user. PLC initiation is compatible without the use of an external relay. Screw type terminal blocks are provided for field wiring on all units.
All variations of the 2000 Series LED beacon feature a four entry fixture to allow cable looping. These cable entries are metric (M20 X 1.5) but other configurations are available upon request.
SPECIFICATIONS
| Mount | Surface |
| Voltage | 24VDC |
| 110VAC | |
| 240VAC | |
| Operating Current | 0.50 Amps @ 24VDC |
| 0.22 Amps @ 110VAC | |
| 0.13 Amps @ 240VAC | |
| Maximum In-rush Current | 1.75A for 5.00mS @ 24VDC |
| 2.00A for 0.25mS @110VAC or 240VAC | |
| Lamp Life | LED Array |
| 50,000 Hours | |
| Flash Rate/Minute | 60 – 80 |
| Exterior Dome | Toughened Glass |
| Dome Guard | 316 Stainless Steel |
| Colors and Light Output | Amber - 113cd |
| Blue - 12cd | |
| Clear - 90cd | |
| Yellow - 60cd | |
| Red - 63cd | |
| Operating Temperature Minimum, Ex d and Ex de | -40 °F |
| Operating Temperature Maximum, Ex d and Ex de | 131 °F |
| Ingress Protection (IP) | IP66 |
| Certification Marking | Ex d IIB T6 Ex tD A21 |
| Ex de IIB T6 Ex tD A21 | |
| Terminals | Ex d - 4 Way Block Mounted PCB |
| Ex de - 12 Way Block in Terminal Chamber | |
| Cable | Ex de - 12 Way Block in Terminal Chamber |
| Body | Marine Grade Alloy Painted Regal Red |
| Net Weight | |
| Ex de | 15.43 lbs |
| Ex de | 15.43 lbs |
| Shipping Weight | 16.50 lb |
| Height | 9.840 in |
| Width | 10.040 in |
| Length | 8.230 in |
