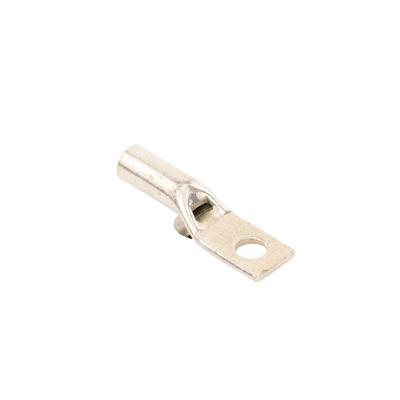

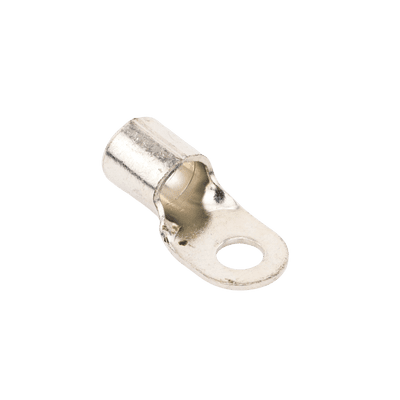

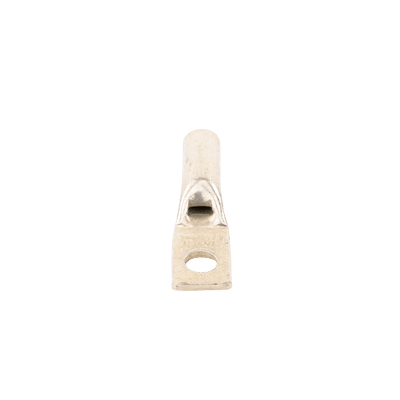

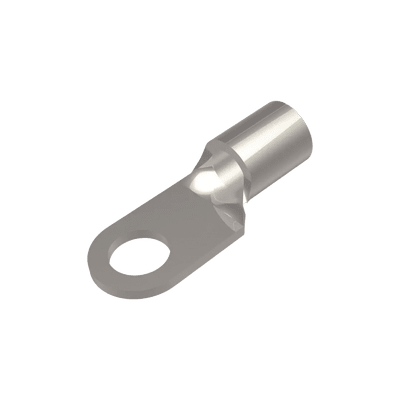

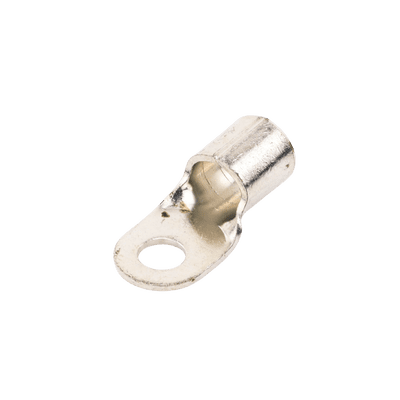

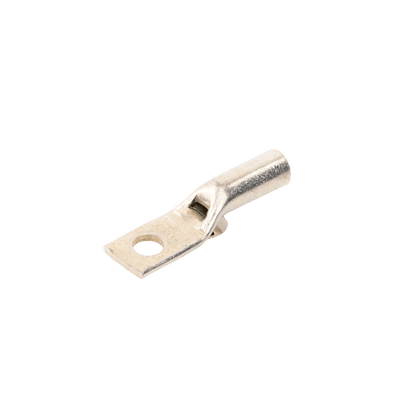

HUB-YAD-26M-10E-38-HUBBELL BURNDY-Zapata Terminal de Ojillo para Tornillo 3/8 " (10 mm) y Calibre 2/0 AWG.

Thumbnail

HUB-YAD-26M-10E-38-HUBBELL BURNDY-Zapata Terminal de Ojillo para Tornillo 3/8 ” (10 mm) y Calibre 2/0 AWG.

SKU: HUB-YAD-26M-10E-38 Brand: HUBBELL

$108.30 MXN IVA incluido+$99.49 MXN de envio

45 disponibles

Descripción

Especificaciones:

Aplicación	Terminal de oreja sin aislamiento
Tipo de Conector	Terminal de anillo
Estado de cumplimiento RoHS EU	CM
Características	Tipo barril largo
Material	Cobre
Número de orificios	1
Tipo de Orificio	Ojillo
Galvanizado	Si
Tipo de recubrimiento	Estaño
Longitud total	1.93 in (49 mm)
Longitud	0.71 in (18.03 mm)
Diámetro exterior	0.67 in (17.01 mm)
Tamaño del tornillo	3/8
Tamaño de orificio	0.41 in (10.41 mm)
Longitud Total mm	49 mm
Longitud Total in	1.93 in
Ancho del ojillo	0.91 in (23.11 mm)
Longitud de la tira	13/16 in (20.63 mm)
Voltaje máximo	600 V
Tamaño de Conductor	2/0 AWG
Tipo de Conductor	Cable de CU sólido y Trenzado

Información adicional

Peso	0.01 kg

YAD26M10E38_Specsheet
