FEATURES

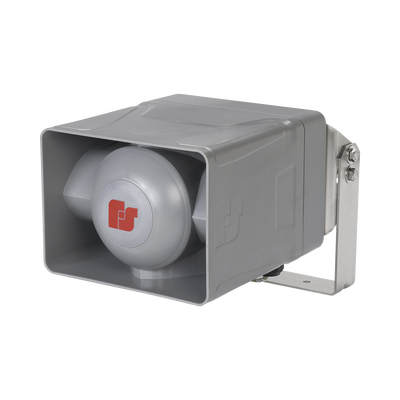

Federal Signal’s Directional Speaker Array (DSA) product line now includes a 100 W non-amplified speaker for hazardous locations, model DSA1X. The DSA1X provides variable taps for 100, 55, 32 or 18 W for use in a variety of applications. It can be powered from a Ultra-Voice Controller or any 25/70 V amplifier.
The DSA1X includes stainless steel hardware for wall or ceiling mount; optional large or small pole mounting brackets and a unique Omni-directional sound deflector are also available.
Combine multiple DSA1X’s with a UV controller to create an integrated mass notification system within a hazardous location environment. The DSA1X can be combined with additional DSA1X speakers for a plant wide notification system. With a maximum output of 100 W, the DSA1X speaker addresses customer needs for a cost effective voice and/ or tone speaker. This speaker is an ideal solution for existing notification systems where lack of coverage exists and a small compact design is required.
SPECIFICATIONS
| Operating Temperature: -40 ̊F to 150 ̊F (-40 ̊C to 66 ̊C) | |
| Small size with rugged construction | 7 in x 9 in 10 in (178 mm x 229 mm x 254 mm) |
| Maximum Sound Pressure Level @ 100 W | |
| 103 dB (± 2 dB) @ 100' | |
| 120 dB (± 2 dB) @ 10' | |
| 130 dB (± 2 dB) @ 1 m | |
| Wall or pole mount options | |
| 25 V and 70 V input taps | |
| 100 W, 55 W, 32 W, and 18 W output taps | |
| SPL @ 55 W | 117 db @ 10' |
| 127 db @ 1 M | |
| SPL @ 32 W | 114 db @ 10' |
| 124 db @ 1 M | |
| SPL @18 W | 111 db @ 10' |
| 121 db @ 1 M |
