Descripción

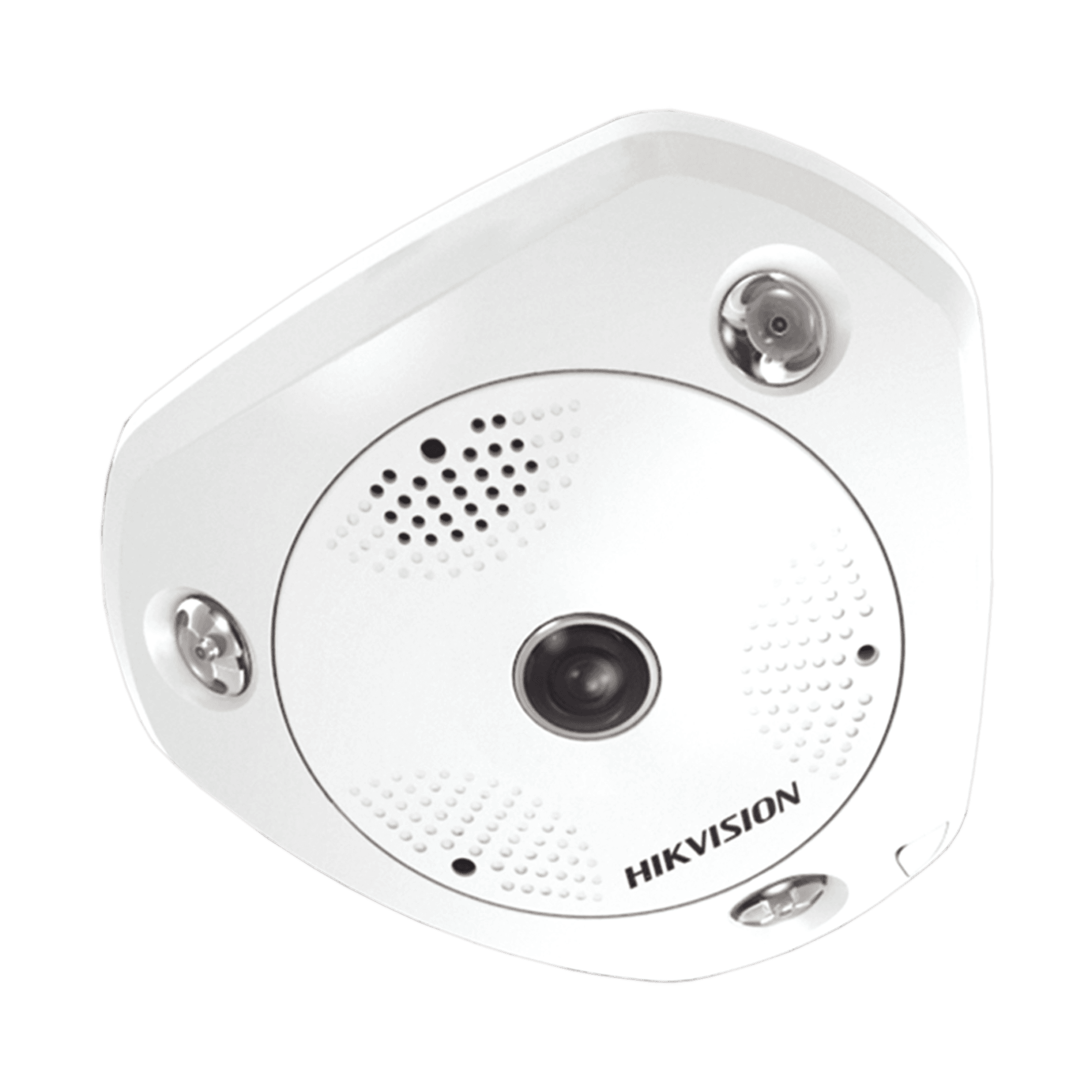

Caracteristicas de la camara:
-
Sensor de imagen: 1/1.7" CMOS Scan Progresivo.
-
Iluminacion minima: 0.01 Lux @ (F1.2, AGC ON), 0.04 Lux @ (F2.4, AGC ON), 0 Lux with IR.
-
Velocidad del sutther: 1/25(1/30)s ~ 1/100,000s
-
Dia / Noche real con filtro ICR.
-
Lente fijo: 1.98mm.
-
Distancia de IR: 15 m.
-
Funciones: WDR real (120dB), 3D-DNR, BLC, Cruce de linea, Intrusion de area, ROI.
Compresion de video y resolucion maxima:
-
Main stream: H.264 / MJPEG.
-
Sub stream: H.264 / MJPEG.
-
Video bit rate: 32 Kbps - 16 Mbps.
-
Compresion de audio: G.711/G.726/MP2L2.
-
Audio bit rate: 64Kbps(G.711) / 16Kbps(G.726) /64Kbps(MP2L2).
-
Resolucion maxima: 4000 × 3072 (12MP).
-
Main stream: 50Hz: 1×fisheye (4000×3072, 20fps; 3072×3072,2560×2560 , 25fps) or 4×PTZ (1600×1200, 12fps) 60Hz: 1×fisheye (4000×3072, 20fps; 3072×3072,2560×2560 , 24fps ) or 4×PTZ (1600×1200, 15fps).
-
Sub stream: (1600×1200, 15fps), (1600×1200, 12fps)
- Modo 1 : 1×Fisheye ó 4×PTZ
- Modo 2: 1×Fisheye(main stream) + 1×Fisheye(sub stream) + 3×PTZ.
- Modo 3: 1×Panorama(main stream) + 1×Panorama(sub stream).
Funciones de red y almacenamiento:
